| Product Overview | | |
| Special Features |
| Multimedia |
PIP, PAP, Zoom |
| Fanless Design |
Yes |
| Source Auto Detect |
Yes |
| Communication Port (Transport Protocol) |
D-Sub 9 Pin In, RJ45 In/Out (RS232C In, RS-485 In/Out) |
| Power Consumption |
| Power Supply |
AC 100V- 240V (50/60 Hz) |
| Normal Operation |
less then 250W |
| Suspend / Standby |
less then 20W |
| Power Off Mode |
less then 20W |
| Environmental |
| Operating Temperature |
5°C~40°C |
| Storage Temperature |
-20°C~60°C |
| Operating Humidity |
85%RH |
| Storage Humidity |
85%RH |
| Options |
| Protective Surface |
4mm Tempered Glass (AG/AR) |
| Audio Amplifier |
ln*l,Out*l |
| Speaker |
10Wx2EA,
40/ 10W+10W(rms)@THD<l% |
| HD-SDi/SDi |
ln*l,Out*l |
| | | | Product specification | | |
| Lcd Panel |
| Brightness |
700 cd/m2 |
| Contrast Ratio |
2000:1 |
| Viewing Angle |
H:176°/V:176° |
| Response Time |
6.5ms (GTG) |
| Supported colors |
16.7M colors |
| Resolution |
1920x1080(16:9) |
| Display Features |
| Horizontal Frequency |
30 - 65 KHz |
| Vertical Frequency |
56 ~ 75 Hz |
| Input Resolution |
1920x 1080 @60Hz (Analog) 1920x 1080 @60Hz (Digital) |
| DDC |
DDC2B |
| OSD Control |
RS232C, Push button, IR Remote Controller |
| OSD Language |
English |
| Physical Features |
| Connector |
15 pin D-Sub / DVI / Component / S-video / AV / Audio (optional) HD-SDi BNC (optional) |

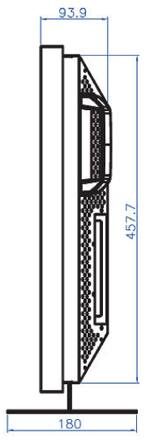

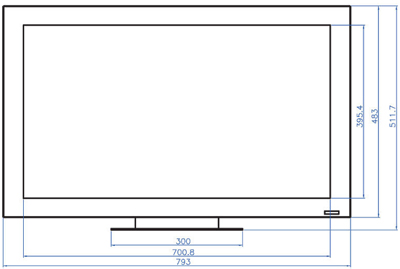

| Dimensions with Stand |
1026 x 619 x 121.6 mm (WxHxD) |
| Weight with Stand |
16kg |
| Weight w/o Stand |
Net: 29kg Gross: 35kg |

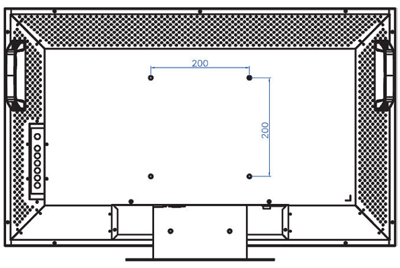

| Wall / Arm Mount Type |
200mm x 200mm / 200mm x 600mm VESA |
|
| | |
