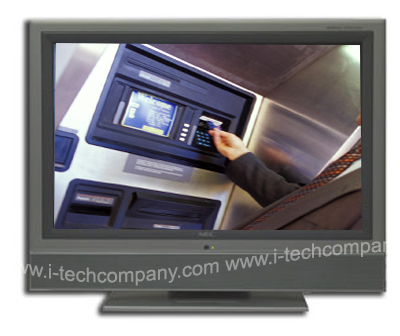

23" Wide-Screen Industrial Grade LCD Integrated Touch Screen w/ Serial Controller(Model:CCH2300-TRS )

23" Industrial Touch LCD Monitor w/ Serial Controller (Model:CCH2300-TRS )

Product Overview

Product discontinues. call us 888-483-2418 for replace items. Features:

(This product is Non-Returnable)

Wide-screen Industrial - Grade 23.0" integrated Touch Screen LCD monitor designed for desktop and VESA arm-mount applications.

It utilizes a 23.0? (16x9)widescreen diagonal color TFT LCD as Industrial grade display and a integrated resistive touch screen as input device. Touch screen communication to CPU is RS232 or USB.

Product specification

Industrial LCD Display Specifications
General
	Product Type	LCD TV
	Technology	TFT Active Matrix
	Display size	Diagonal: 22.9" widescreen
	Width	22.8 in
	Depth	8.3 in
	Weight	22 lbs
Video System
	Resolution	1280 x 1024 @ 60Hz
	Image contrast Ratio	500:1
	Pixel Pitch	0.39 mm
	Pixel Response time	25 ms
	Viewing angle	170 degrees
	Brightness	500 cd/m2
Audio System
	Output mode	Stereo
Television Features
	Miscellaneous compliant standards	Stereo - integrated
	Additional features	On-screen menu
Tuner/Channel Details
	TV tuner multi-channel preview	Split screen, Picture- in- picture (PIP), Picture-on-picture (POP)
Remote Control
	Remote Control	Infrared
Connections/Cables/Slots
	Input/Output connections	1 x DVI- Digital (24 pin digital DVI) - Rear, 1 x VGA input (15 pin HD D- Sub (HD- 15)) - Rear, 2 x Component video input (RCA phono x 3) - Rear, 1 x Audio line- in (Mini- phone stereo 3. 5 mm) - Rear, 1 x Composite video input (RCA phono) - Rear, 1 x S- Video input (4 pin mini- DIN) - Rear, 3 x Audio line- in (RCA phono x 2) - Rear, 1 x Audio line- out (RCA phono x 2) - Rear, 2 x Speakers output (RCA phono x 2) - Rear, 1 x Subwoofer output (RCA phono) - Rear
	Cables Included	1 x VGA cable, 1 x Audio cable
Power
	Power device	Power supply - External
	Voltage required	50/60 Hz
	Power consumption operational	120 Watt
	Operational power consumption	5 Watt
Shipping Dimensions
	Width(Shipping)	26.6 in
	Depth(Shipping)	10.5 in
	Height (Shipping)	22.9 in
	Weight (Shipping)	30.9 lbs

Touch Screen Typical Specifications

	COMMERCIAL Touch Screen	INDUSTRIAL Touch Screen	MILITARY Touch Screen
Mechanical
Actuation Force*	20-500 grams	20-500 grams	20-500 grams
Actuation Travel	0.05 mm	0.05 mm	0.05 mm
Thickness (w/o sup.)	0.50 mm	0.50 mm	0.50 mm
Thickness (w/sup.)	2 mm (min)	2 mm (min)	2 mm (min)
Mechanical Life	36 million +	36 million +	36 million +

Electrical
Contact Resistance:
Open	20 Meg Ohm	20 Meg Ohm	20 Meg Ohm
Close	10-30 K-Ohm	10-30 K-Ohm	10-30 K-Ohm
Operating Voltage	5 Volts	5 Volts	5 Volts
Operating Current	5 Micro Amp	5 Micro Amp	5 Micro Amp
ESD Shield	7 KV Min	7 KV Min	7 KV Min

Optical
Light Transmissivity:
@ 550 Nano Meters	82%-83%	82%-83%	82%-83%

Environmental
Temperature
Operating & Non-Operating:	0 to 35°C (32° to 95°F)	-10° to 55°C (14° to 131°F)	-40° to 85°C (-40° to 185°F)
Altitude
Operating & Non-Operating:	12,000 meters	12,000 meters	12,000 meters
Vibration
	0.7G @ 15 Hz	0.7G @ 15 Hz	0.7G @ 15 Hz
	1.3G @ 25 Hz	1.3G @ 25 Hz	1.3G @ 25 Hz
	3G @ 55 Hz	3G @ 55 Hz	3G @ 5 Hz
Shock
	30G for 11 Mil. Sec.	30G for 11 Mil. Sec.	30G for 11 Mil. Sec.
* Using a .375 inch diameter RTV tip.
