Industrial grade NEMA 4x approved Front-Panel-Mount LCD integrated Touch screen monitor available in 15.0" diagonal size. The active matrix (TFT) LCD, resistive-type touch screen is mounted in a rugged steel enclosure less than 3" deep, with Zinc plating for optimum noise immunity. Touch screen communication to CPU is RS232. Other diagonal sizes and communications format are available on custom basis. Video input is VGA.
This is a robust industrial grade display designed to withstand harsh environments and provide easy access for upgrade or maintenance. The display surface has a chemical resistant, polyester overlay that adds to the display's rugged design.
| Industrial LCD Display Specifications |
| |
|
Color TFT- LCD; 1280 x 1024 resolution;
VGA, SVGA, XGA, SXGA;
17” diagonal display area, polyester face panel |
Display Brightness |
350 nits |
Touch Screen |
Analog Resistive; protective overlays composed of
polyester; includes Windows drivers |
Backlight |
Cold cathode - typical life expectancy 25,000 hours. |
|
Mechanical Specifications |
| |
Material |
Stud Mounted Metal Bezel, black |
| |
Bezel |
14 gauge steel, CRS |
| |

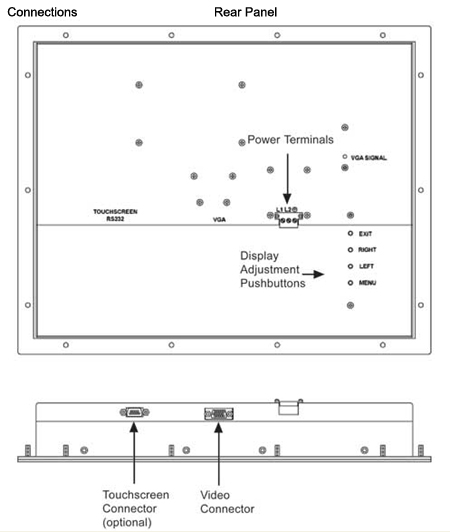

Ports |
Available only in RS-232 port for Touch Screen;
One Video port |
| |
VGA Cable |
15-pin male D-sub at each end - 6, 10, 30 and
60 foots lengths available |
| |
Service Power |
AC - 100 to 250 VAC at 50/60 Hz |
| |
Power Consumption |
AC - less than 40 VA |
| |
Fuse Rating |
1.5 Amp Slo-Blo 250V |
| |

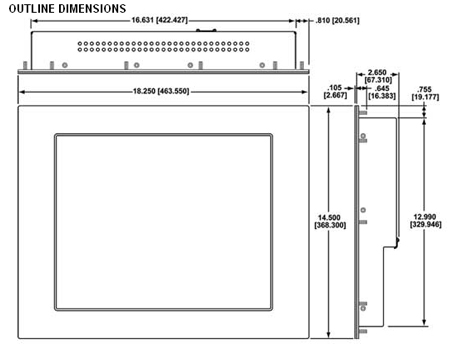

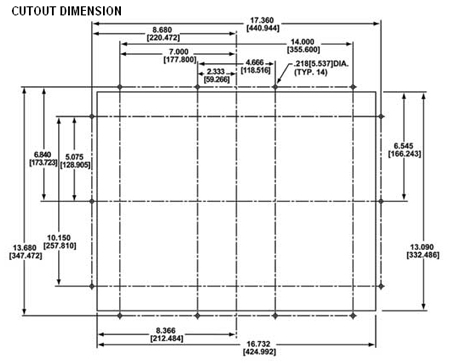

Dimensions |
18.250"W x 14.50"H x 2.650"D
(463.550 x 368.30 x 67.310 mm)
|
| |
Weight |
15.9 lbs. (7.2 kg) |
 |
 |
 |
|
Environmental Specications |
| |
Operating Temperature |
0 to +50° C (32 to 122° F) |
| |
Storage Temperature |
-20 to +60° C (-4 to +140° F) |
| |
Humidity |
10 to 95% Relative Humidity (non-condensing) |
| |
Electrical Noise Tolerance |
NEMA ICS 2 - 230 showering arc ANSI C37.90a - 1974
SWC Level C Chattering Relay Test |
| |
Ratings |
NEMA 4X (Indoor use only) |
| |
Agency Approvals |
CE mark, UL/CUL, FCC compliant |
Touch Screen Typical Specifications
|
COMMERCIAL Touch Screen |
INDUSTRIAL Touch Screen |
MILITARY Touch Screen |
| Mechanical |
|
|
|
| Actuation Force* |
20-500 grams |
20-500 grams |
20-500 grams |
| Actuation Travel |
0.05 mm |
0.05 mm |
0.05 mm |
| Thickness (w/o sup.) |
0.50 mm |
0.50 mm |
0.50 mm |
| Thickness (w/sup.) |
2 mm (min) |
2 mm (min) |
2 mm (min) |
| Mechanical Life |
36 million + |
36 million + |
36 million + |
|
|
|
|
| Electrical |
|
|
|
| Contact Resistance: |
|
|
|
| Open |
20 Meg Ohm |
20 Meg Ohm |
20 Meg Ohm |
| Close |
10-30 K-Ohm |
10-30 K-Ohm |
10-30 K-Ohm |
| Operating Voltage |
5 Volts |
5 Volts |
5 Volts |
| Operating Current |
5 Micro Amp |
5 Micro Amp |
5 Micro Amp |
| ESD Shield |
7 KV Min |
7 KV Min |
7 KV Min |
|
|
|
|
| Optical |
|
|
|
| Light Transmissivity: |
|
|
|
| @ 550 Nano Meters |
82%-83% |
82%-83% |
82%-83% |
|
|
|
|
| Environmental |
|
|
|
| Temperature |
|
|
|
Operating &
Non-Operating: |
0 to 35°C (32° to 95°F) |
-10° to 55°C (14° to 131°F) |
-40° to 85°C (-40° to 185°F) |
| Altitude |
|
|
|
Operating &
Non-Operating: |
12,000 meters |
12,000 meters |
12,000 meters |
| Vibration |
|
|
|
| |
0.7G @ 15 Hz |
0.7G @ 15 Hz |
0.7G @ 15 Hz |
|
1.3G @ 25 Hz |
1.3G @ 25 Hz |
1.3G @ 25 Hz |
|
3G @ 55 Hz |
3G @ 55 Hz |
3G @ 5 Hz |
| Shock |
|
|
|
| |
30G for 11 Mil. Sec. |
30G for 11 Mil. Sec. |
30G for 11 Mil. Sec. |
| * Using a .375 inch diameter RTV tip. |
|
;)
;)
;)
;)
;)
;)
;)
;)
